ASTM A217 WC6 gate valve is a low-alloy containing chromium and molybdenum that helps prevent the metal from degrading at high heat. Chromium provides resistance to oxidation and corrosion, while molybdenum increases creep strength of the alloy.
This guide explains the technical reasons for selecting a WC6 gate valve, particularly its advantages for high-temperature services like power and petrochemical systems. Engineers commonly use these valves thanks to their capabilities to handle long-thermal exposure and high-pressure applications.
ASTM A217 WC6 Gate Valve’s Technical Characteristics
High Temperature and Pressure
The primary advantage of ASTM A217 WC6 valves is their capability to handle extreme heat conditions up to 593°C and high-pressure from Class 600 to 2500 and PN100 to PN420. They are suitable in harsh environments like steam pipes and oil lines.
- Maximum Temperature: 550°C
- Design Temperature Range: -196°C to 593°C
- Pressure Rating: PN16 to PN420
- Pressure Class: 150LB to 2500LB
Here is a clear comparison how these valves differ to other alloy steel gate valve:
| Factors | WC9 | WC9 |
| Maximum Temperature | 538°C | 595°C |
| Creep Resistance | Lower than WC9 | Higher and optimized for long-term uses |
| Application Suitability | Subcritical service | Extremely critical applications |
Meanwhile, comparing WC6 vs WCB is also equally essential for proper material selection. WCB is a standard carbon steel used for general purposes and works well in environments up to 425°C (800°F). It is also more cost-effective for water or oil at lower temperatures. In contrast, WC6 is ideal when the system involves superheated steam or high-temp gases.
Mechanical Strength
ASTM A217 WC6 valves are also durable and do not easily break. The material has a yield strength of at least 40 ksi (275 MPa). Their tensile strength is between 70 to 95 ksi (485-655 MPa), which allows them to take heavy loads and sudden pressure changes.
The WC6 alloy helps the valve to be strong and long-lasting, making them ideal for places where safety is highly essential.
| Property | Description |
| Mechanical Strength | Superior toughness and strength that is vital for high-pressure applications. |
| Corrosion Resistance | Enhanced by molybdenum, making them ideal for corrosive settings. |
| Temperature Resistance | Capable of withstanding temperatures up to 593°C, suitable for oil and steam industries. |
Bolted Bonnet Steel Gate Valves for the petroleum and natural gas industries, designed for reliable performance in harsh conditions.
Explore Product
Corrosion Resistance
The molybdenum component in WC6 helps the valve fight corrosion and oxidation. This makes ASTM A217 WC6 gate valves good for oil, steam, or chemical industries. Their corrosion resistance is better than carbon steel but not as good as stainless steel or nickel superalloys.

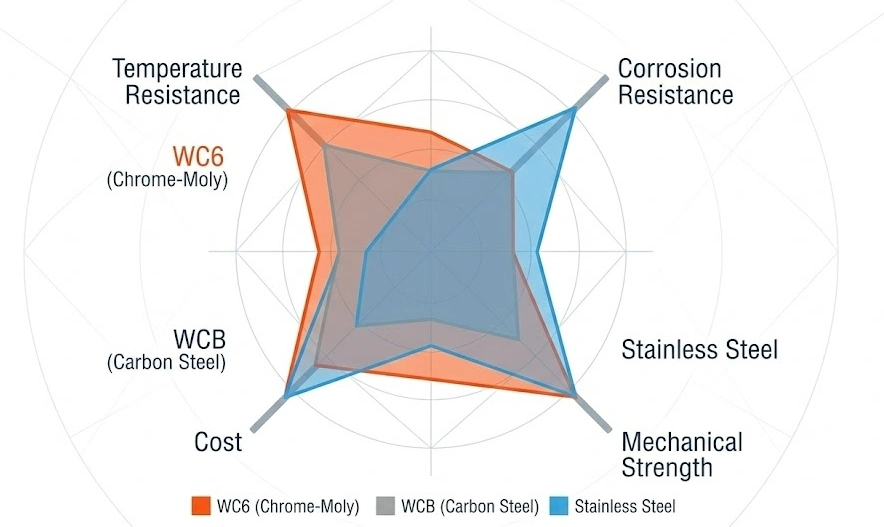

| Materials | Corrosion Resistance | High Temperature Resistance | Applications |
| ASTM A217 WC6 | Moderate | Excellent | High-temperature and pressure valves |
| Carbon Steels | Low | Moderate | General applications |
| Austenitic Stainless Steels | High | Moderate | Corrosive settings |
| Nickel Superalloys (Hastelloy) | Very High | Excellent | Highly corrosive environments |
Tip: If you need a valve for oil, steam, or chemical industries, WC6 gate valves provide a good balance of corrosion resistance and high temperature performance.
Application Range
ASTM A217 WC6 valves are widely used in different places, such as power plants, oil refineries, offshore oil rigs, chemical plants, and petrochemical factories.
| Industries | Description |
| Electric Power | Used in electric power generation facilities. |
| Petroleum Refining | Applicable in refining processes in the petroleum industries. |
| Petrochemical Engineering | Used in the production and processing of petrochemicals. |
| Offshore Oil | Utilized in offshore oil extraction operations. |
| Chemical Engineering | Used in different chemical processing applications. |
They also help control oil, water, and gas flow, particularly systems that need to handle high heat and pressure.
| Medium | Description |
| Water | Ideal for water transport and control. |
| Oil | Utilized in oil pipelines and facilities. |
| Gas | Applicable in gas distribution systems. |
You can also find WC6 valves in medicine, food factories, and fertilizers. This pressure class rating table will help you choose the right valve for your needs.
| Pressure Classes | Size Ranges |
| 150 LB | 2″ to 36″ |
| 300 LB | 2″ to 36″ |
| 600 LB | 2″ to 24″ |
| 2500 LB | N/A |
Service Life
ASTM A217 WC6 valves last a long time as their strong material and resistance to heat and corrosion help them work for years. They also do not require frequent replacements, helping you save time and money.
Tip: Selecting a WC6 gate valve means you get durability and efficiency in the long run, even in harsh environments.
Conclusion
The WC6 gate valve serves as a critical component for managing high-temperature and high-pressure settings. Its chromium-molybdenum composition prevents metal deformation and graphitization in extreme heat. Choosing the correct high temperature gate valve material ensures safer and more efficient industrial operations.
YKY is a trusted China valve manufacturer that provides a wide range of gate valves manufactured to strict international standards, including ISO9001, API, CE, and more. We supply to more than 10 industries, such as petrochemical, power, and water systems where WC6 valves are widely used.
At YKY, we also offer comprehensive customization services to help you build the perfect valve in accordance with your specific application, system, and performance needs.
