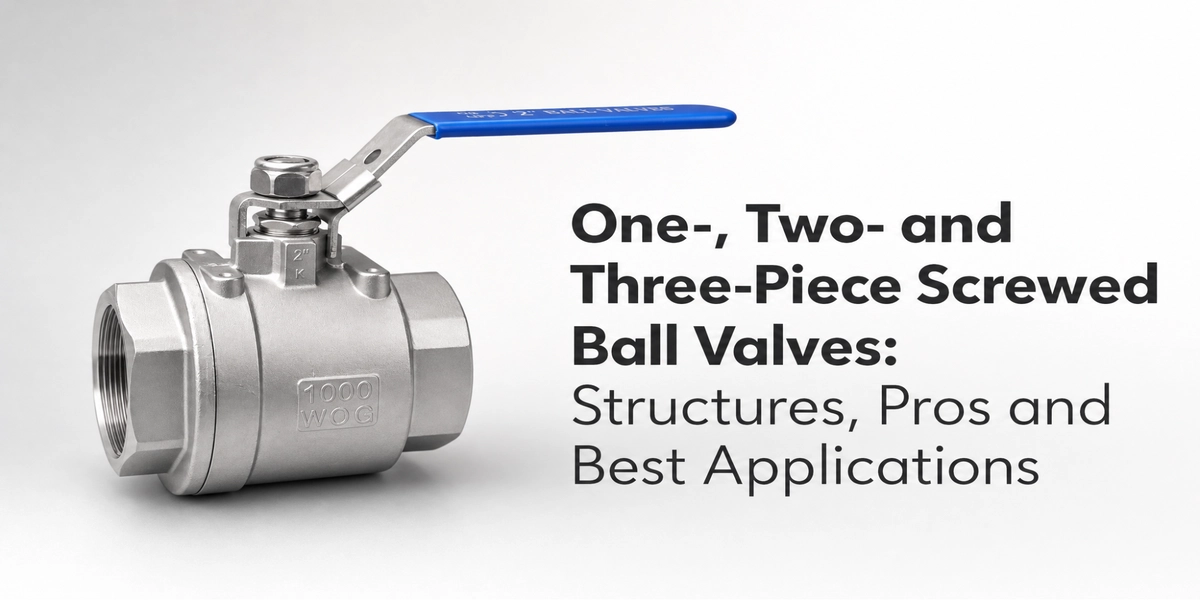

Choosing the correct One-, Two- and Three-Piece Screwed Ball Valves structure is a critical decision for industrial engineers who want to minimize pipeline downtime and achieve reliable, zero-leak performance. While threaded connections can speed installation in smaller pipe diameters, the real impact comes from the internal body configuration—one-piece, two-piece, or three-piece—which affects maintenance effort, serviceability, and operational safety.
That’s why modern facilities increasingly evaluate screw ball valves using stricter air-tightness expectations, including compliance with ISO 5208, especially for high-risk processes like ammonia synthesis where even small sealing failures can have serious consequences.
Threaded End Connections (Screwed Ends) Made Simple
Threaded end connections, also called screwed ends, are a go-to option for small-bore piping when the line doesn’t need to be assembled and disassembled often. A ball valve screw type uses internal or external threads to connect the valve directly to the pipe, making it a compact and cost-effective choice—especially for low-pressure systems like HVAC and agricultural irrigation. To ensure a secure fit, engineers choose the right thread standard, such as NPT or BSPT, to achieve a proper mechanical seal.
At YKY Valve, we support multiple international thread standards for projects in 30+ countries, and our screw end ball valves are tested to meet API and DIN standards so the connection holds up to vibration and stress in high-flow conditions.
Understanding One, Two, and Three-Piece Valve Structures

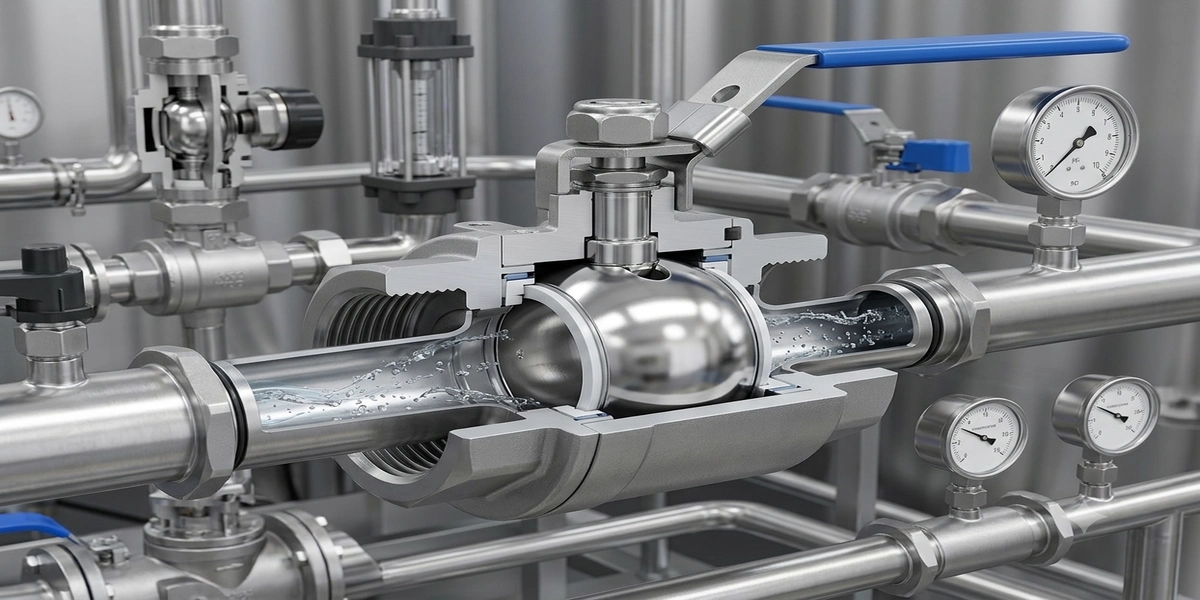

The internal construction of a screw ball valve significantly influences its repairability and pressure-bearing capacity. Understanding these structural differences is the first step in selecting a valve that matches your specific system requirements.
One-Piece Body Design
The one-piece ball valve features a solid, cast body that houses the ball and seats. Because the body is made from a single piece of material, it has the fewest potential leak paths, making it a robust choice for handling gas or hazardous fluids where external leakage must be eliminated. However, the reduced port design inherent in one-piece valves can lead to a higher pressure drop across the line.
Two-Piece Body Design
Commonly referred to as a 2 screw ball valve in field operations, the two-piece structure consists of a main body and a single end cap. This design allows for a full-port configuration, which minimizes flow restriction. The YKY ss ball valve screw end in a two-piece format is a staple in the chemical industry due to its balance of cost-efficiency and performance. While more maintainable than one-piece versions, it still requires the valve to be removed from the line for seal replacement.
Three-Piece Body Design
The three-piece screwed ball valve is the “gold standard” for maintenance-heavy operations. It consists of a center body and two pipe ends held together by bolts. This “swing-out” design allows technicians to replace seats and seals without disturbing the threaded pipe connections. This is particularly valuable in the metallurgy industry, where high-temperature operations require frequent hardware inspections.
Comparative Analysis of Screwed Valve Structures
When evaluating a ball valve vs screw valve (or more accurately, a ball valve with screwed ends), engineers must weigh initial procurement costs against the total lifecycle expense of the component. The table below summarizes the key technical differences based on industrial performance data.
Technical Performance Comparison Table
| Feature | 1-Piece Structure | 2-Piece Structure | 3-Piece Structure |
| Bore Size | Reduced Port | Full Port | Full Port |
| Leakage Risk | Lowest (Minimal Joints) | Moderate | High (Multiple Joints) |
| Maintenance | Non-Repairable | Disconnect to Repair | In-Line Repairable |
| Cost | Most Economical | Moderate | Premium |
| Typical Use | Low-Pressure HVAC | Chemical Processing | High-Cycle Industrial |
| Pressure Rating | Up to 1000 PSI | Up to 2000 PSI | Up to 3000 PSI+ |
Selecting the wrong structure for an abrasive media environment, such as fertilizer production, can lead to premature wear.
Troubleshooting and Selection for Working Conditions
One of the most frequent issues reported by maintenance teams is a ball valve leaking from screw threads. This is often caused by improper thread engagement or the use of incompatible sealants. To mitigate this, YKY Valve provides full technical support to help you match thread forms (NPT/BSPT) and materials to your specific working environment.
In the pharmaceutical sector, where hygiene is paramount, we recommend 316L electro-polished stainless steel bodies. These valves must meet GMP requirements with a surface roughness of ≤ 0.8μm to ensure successful CIP/SIP cleaning. For industrial oilfields, we offer 4130 forged steel options that withstand thermal shocks up to 800°C, ensuring reliability in continuous smelting or deep-sea pipelines.
What is the primary difference between a 2-piece and 3-piece ball valve?
A 2-piece ball valve consists of two main parts and usually requires removal from the pipeline for maintenance. A 3-piece ball valve features a central body and two end caps secured by bolts; its “swing-out” design allows for in-line maintenance, meaning you can replace seals without disconnecting the threaded ends from the pipe.
2PC Flanged Ball Valve
Designed for chemical and industrial systems, this 2PC flanged ball valve provides reliable shut-off for corrosive media such as acids, with stable sealing performance.
- Size: DN15 – DN200
- Pressure: PN16 – PN64 / Class 150 – 600
- Body Material: Stainless Steel & Carbon Steel
- Seat: PTFE / RPTFE / PEEK
- Connection: RF, RTJ Flanged
- Temperature: -29°C to 121°C
Why Choose YKY for Your Screwed Valve Solutions?
YKY Valve is more than just a manufacturer; we are a technical cooperative factory that understands the nuances of structural differences. We provide comprehensive customization services, allowing you to tailor materials, seal types (PTFE, PEEK, or Metal), and actuation methods (manual, pneumatic, or electric) to your system design.
Our 99% on-time delivery rate ensures that project buyers and wholesalers can scale their businesses without the risk of supply chain bottlenecks. With over 20 years of experience, our team provides English technical support and full-spec CAD drawings to ensure your valves meet exact compliance standards, including API 6D and ISO 9001.
Structure Selection Checklist
To optimize your flow control, use this checklist before finalizing your order:
- Port Requirement: Do you need a Full Port (2/3-pc) or is a Reduced Port (1-pc) acceptable?
- Maintenance Frequency: Will you need to repair the valve in-line (3-pc)?
- Media Type: Is the fluid corrosive (SS/Hastelloy) or abrasive (Hardened Steel)?
- Pressure/Temp: Does the application require high-temp (800°C) or high-pressure (1000 bar) ratings?
Ready to cut costs and speed up your project with fully certified, customizable valves?
FAQS
When should an engineer specify a three-piece over a two-piece screwed ball valve?
Specify a three-piece unit for high-cycle, high-temperature, or aggressive media applications. The swing-out body allows in-line seat and seal replacement without disconnecting the pipe — eliminating hours of downtime per maintenance event in chemical plants and metallurgy facilities.
What causes a ball valve to leak from the threaded connection?
Thread leaks trace back to three causes: mismatched thread standards (NPT vs BSPT), insufficient thread engagement depth, or incompatible sealant selection. BSPT parallel threads require a face seal — not PTFE tape. Confirming thread form compatibility before installation eliminates this failure mode entirely.
What materials does YKY offer for corrosive or high-temperature service?
YKY supplies SS304, SS316L, Hastelloy, and PTFE-lined carbon steel bodies. Pharmaceutical applications use 316L electro-polished bodies at ≤0.8μm surface finish for GMP compliance. Oilfield and metallurgy service uses 4130 forged steel rated for thermal shocks up to 800°C.
