What Is a Stainless Steel Globe Valve?
Stainless globe valve designs use a movable disc and stationary ring seat to regulate fluid flow. The disc moves perpendicular to the seat, allowing precise throttling control. This design differs from gate valves that lift the gate parallel to flow.
Globe valve stainless steel construction uses grades like 304, 316, and duplex stainless steel. These materials resist corrosion in chemical processing, water treatment, and steam systems. The body, disc, and seat require materials matching the process fluid and operating conditions.
Industrial globe valves handle pressures up to 2500 psi and temperatures from -320°F to 1000°F depending on design. Globe valves create higher pressure drop than gate valves due to their flow path. This makes them better suited for throttling applications rather than isolation service.
What Are the Main Types of Stainless Steel Globe Valves?
Different stainless steel globe valve types suit specific installation and operational requirements. Each design offers distinct advantages for particular applications.
| Type | Connection | Best Use | Temperature Range | Key Advantage |
| Flanged Globe | Flanged ends | Large pipes, easy maintenance | -20°F to 800°F | Removable for service |
| Forged Globe | Threaded/SW | High pressure, compact | -20°F to 1000°F | Superior strength |
| Angle Globe | 90° angle body | Space-saving, reduced erosion | -20°F to 750°F | Eliminates one elbow |
| Bellows Globe | Bellows seal | Zero emissions | -20°F to 800°F | Prevents stem leakage |
| Cryogenic Globe | Extended bonnet | LNG, liquid nitrogen | -320°F to 100°F | Low-temperature service |
Stainless Steel Flanged Globe Valve
Flanged stainless steel globe valve designs use raised face or ring-type joint flanges for connection. Flange ratings range from Class 150 to Class 2500 based on pressure requirements.
Key features:
- Sizes from 2 to 24 inches for pipeline applications
- Bolted flange connection allows easy removal for maintenance
- Gaskets between flanges provide tight sealing
- Standard dimensions follow ASME B16.5 or B16.47
Applications include steam systems, cooling water circuits, and chemical feed lines. The flanged design works well where valves need regular maintenance or replacement.
Forged Stainless Steel Globe Valves
Forged stainless steel globe valves use forged body construction instead of cast bodies. The forging process creates superior grain structure and mechanical strength. This construction handles higher pressures and cyclic loading better than cast valves.
Key features:
- Sizes from 1/4 inch to 4 inches
- Threaded or socket weld end connections
- Pressure ratings up to Class 6000 in smaller sizes
- Compact design for tight spaces
Forged valves cost more than cast valves but provide better reliability in critical applications. Power plants use them for boiler feedwater and high-pressure steam service. Chemical plants specify forged valves for high-pressure reactor systems.
Stainless Steel Angle Globe Valve
The stainless steel angle globe valve body forms a 90-degree angle between inlet and outlet. This design eliminates one pipeline elbow, reducing installation space and cost. The flow path changes direction naturally within the valve.
Key features:
- Eliminates one 90-degree elbow in piping layout
- Reduces erosion on seat and disc compared to standard globe valves
- Vertical inlet and horizontal outlet simplify vessel connections
- Better performance in erosive and slurry applications
Angle valves handle erosive service better than standard globe valves. Installation beneath tanks or vessels suits angle globe valve geometry. Drainage applications use angle valves to prevent fluid accumulation.
Stainless Steel Bellow Globe Valve
Stainless steel bellow globe valve designs use a metal bellows to seal the stem. The bellows prevents any fluid leakage along the stem, achieving zero emissions. This matters for toxic, flammable, or environmentally sensitive fluids.
Key features:
- Metal bellows flexes with stem movement while maintaining hermetic sealing
- Thousands of cycles without bellows failure
- Secondary packing provides backup sealing
- Zero emissions for hazardous services
Chemical plants use bellows valves for hazardous chemicals. Pharmaceutical facilities specify them for high-purity processes. Refineries install bellows valves on volatile hydrocarbon services.
Stainless Steel Cryogenic Globe Valves
Cryogenic stainless steel globe valve construction handles extremely low temperatures. Extended bonnets keep packing away from cold process fluids. Special trim materials maintain ductility at cryogenic temperatures.
Key features:
- Temperature ratings down to -320°F for LNG and liquid nitrogen
- Extended bonnet prevents ice formation on external components
- 316 stainless steel bodies with special low-temperature trims
- Rigorous low-temperature testing verifies performance
These valves serve liquefied natural gas facilities, air separation plants, and industrial gas distribution. Cryogenic applications demand strict quality testing and performance verification to ensure safe operation at extreme temperatures.

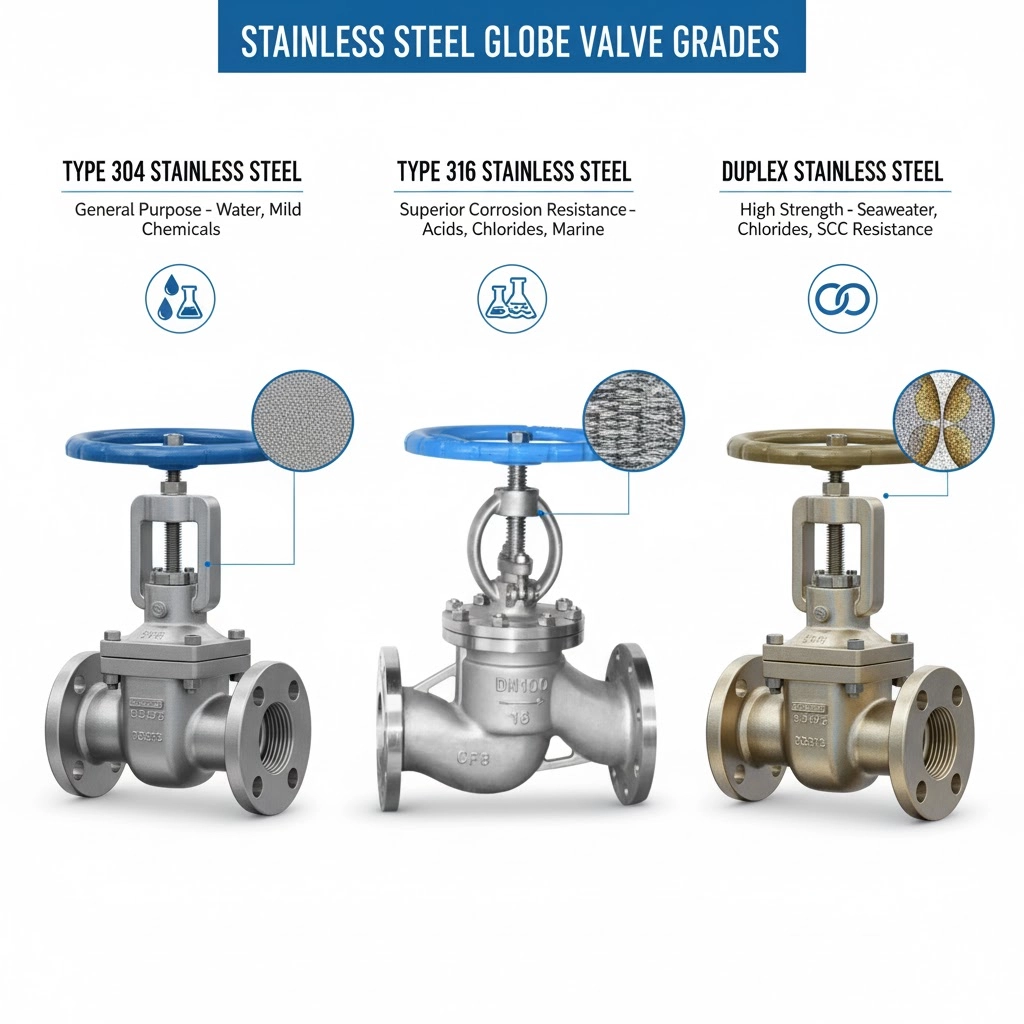

What Stainless Steel Grades Are Used in Globe Valves?
Different stainless steel grades suit various operating conditions and process fluids. Grade selection affects corrosion resistance, strength, and cost.
Type 304 stainless steel globe valves provide good corrosion resistance for general applications. They handle water, mild chemicals, and food processing fluids with temperature limits reaching 800°F. Cost advantages make 304 the most common grade for non-critical applications.
Type 316 stainless steel adds molybdenum for superior corrosion resistance. It handles chlorides, acids, and marine environments better than 304. Chemical processing and offshore applications specify 316 material. The higher cost is justified when corrosion resistance matters.
Duplex stainless steel globe valve designs combine austenitic and ferritic structures. This provides double the strength of 304/316 at similar cost. Applications include seawater service and chloride environments. The material resists stress corrosion cracking better than austenitic grades.
Are Stainless Steel Valves Better?
Stainless steel valves offer specific advantages over carbon steel or bronze valves. Material selection depends on application requirements rather than one being universally better.
Corrosion resistance makes stainless steel valves superior for chemicals, food processing, and pharmaceuticals. Carbon steel corrodes in these applications while stainless steel maintains integrity. The material handles oxidizing acids, chlorides, and high-purity water without degradation.
Temperature capability extends from cryogenic to high-temperature service. Stainless steel maintains strength at temperatures where bronze fails. Cryogenic applications require stainless steel since carbon steel becomes brittle at low temperatures.
Cost considerations favor carbon steel for non-corrosive applications. Stainless steel costs 3-5 times more than carbon steel. Water and steam systems often use carbon steel successfully at lower cost. Choose stainless steel when corrosion, contamination, or temperature extremes justify the investment.
What Is the ASTM for Stainless Steel Valves?
ASTM standards specify material requirements for stainless steel valve components. Different standards cover castings, forgings, and bar stock used in valve manufacturing.
Casting standards: ASTM A351 covers stainless steel castings for valve bodies and bonnets. Grade CF8M designates 316 stainless steel castings. Grade CF8 specifies 304 stainless steel. These grades match the composition of wrought 316 and 304 respectively.
Forging standards: ASTM A182 specifies forged stainless steel for valve components. Grade F316 provides forged 316 stainless steel. Grade F304 covers forged 304 material. Forged components include stems, discs, and small valve bodies.
Bar stock standards: ASTM A276 covers stainless steel bars for valve stems and small parts. Manufacturers reference these ASTM grades in material certificates and valve documentation.

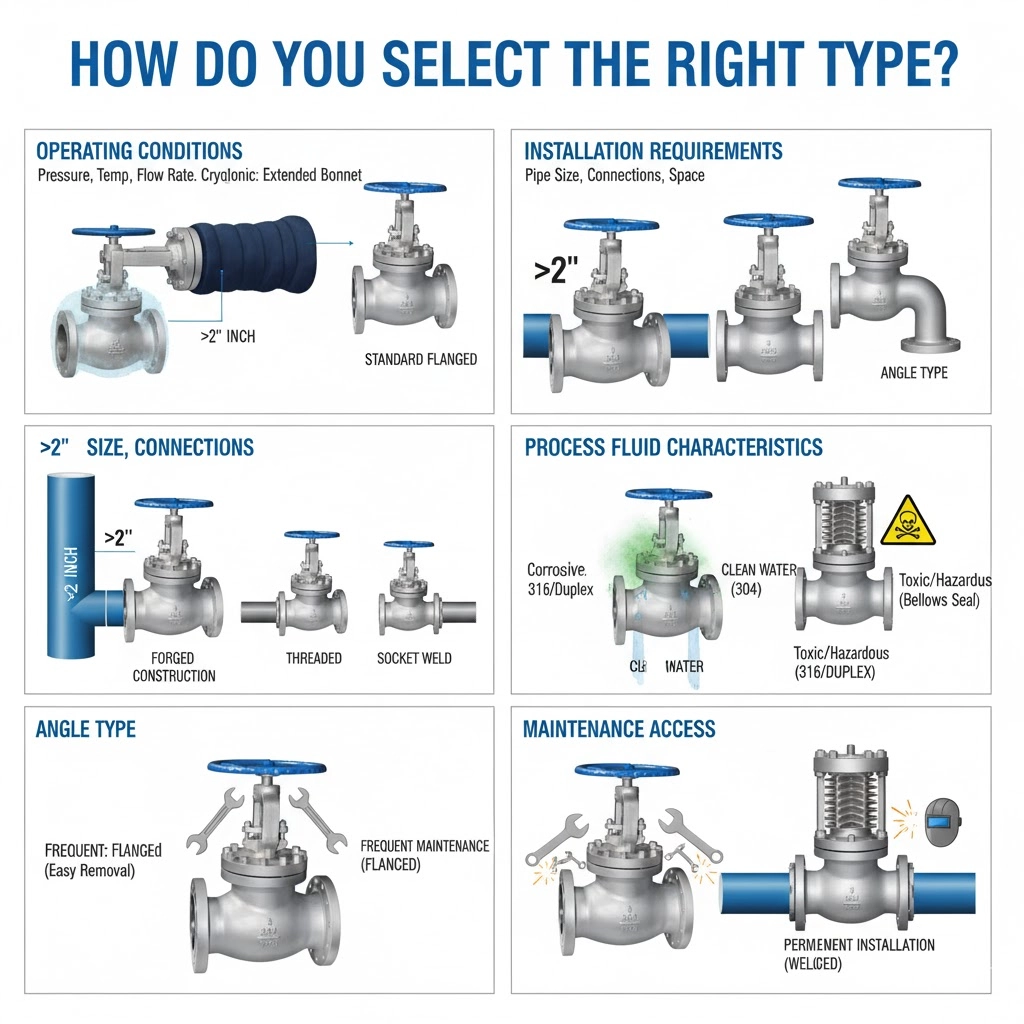

How Do You Select the Right Type?
Selecting the appropriate stainless steel globe valve type requires evaluating application factors. Different types suit different operating conditions and installation requirements.
Operating conditions: Determine maximum pressure, temperature, and flow rate. Cryogenic service requires cryogenic stainless steel globe valve designs with extended bonnets. High-pressure applications need forged construction. Standard flanged valves suit moderate conditions.
Installation requirements: Pipeline size determines connection type. Pipes 2 inches and larger typically use flanged stainless steel globe valve connections. Smaller lines use threaded or socket weld ends. Space constraints may favor stainless steel angle globe valve designs.
Process fluid characteristics: Corrosive fluids require 316 or duplex grades. Clean water services accept 304 stainless steel globe valves. Toxic or hazardous fluids need stainless steel bellow globe valve designs for zero emissions.
Maintenance access: Frequent maintenance favors flanged connections for easy removal. Permanent installations accept welded connections. Valve location and accessibility affect connection type selection.
