An industrial check valve is an automated, self-actuated device that permits fluids to flow in a single direction while preventing backflow. Selecting the right check valve type depends on the process media, operating pressure, flow rate, and installation environment, among other factors in the service application.
With “What Is an Industrial Check Valve Used For?” as a point of reference, this article provides the technical criteria necessary to guide and compare options for B2B procurement and engineering.
Backflow Prevention: Key Check Valve Types
All check valves perform the same basic function of preventing reverse flow. However, the internal mechanisms impact maintenance requirements, sealing performance, pressure loss, and service life, along with suitable industrial applications.
The Ball Check Valve Type
This design utilizes a rubber-coated or metal ball that is guided into a top chamber when open and returns to the seat when closed. The ball’s tendency to roll during operation naturally removes accumulated sedimentary deposits and other debris, minimizing clogging.
This type is recommended for slurry, sewage, wastewater, and other applications dealing with suspended solids. However, the ball’s inertia can contribute to slamming and water hammer during rapid flow reversal, so this design is less suitable for high-service heads.
The Lift Check Valve Type
Also called the nozzle or poppet design, this operates with a disc that moves vertically away from the seat as guided by a central stem. It is often spring-loaded so it remains silent during rapid closure as the system pressure decreases.
Due to its precise seating mechanism, it is commonly used in high-pressure steam systems, hydraulic circuits, and other process applications where water hammer must be eliminated. The lift design generates greater flow resistance compared to swing types, too.
The Swing Check Valve Type
The most prevalent design features a circular disc connected to a hinge pin that swings open with forward flow and closes under gravity and back pressure. The simple, streamlined flow path creates low head loss and flow resistance, suitable for deep-sea and oilfield applications.
YKY produces swing check valves in accordance with international API 6D and GB standards, using high-strength materials such as forged steel and ductile cast iron. For applications where energy efficiency is a priority, consider the specifications of the API swing check valve.
Engineered for high-pressure pipelines, this API swing check valve features a durable swing disc and metal-to-metal seal—ideal for oil refineries, power plants, and steam systems.
Explore Product
The Dual Plate Check Valve Type
Sometimes called the butterfly design, this features two spring-assisted D-shaped discs rotating around a central hinge pin. Forward flow pushes both discs open, while reverse flow and the torsion spring return them to the closed position.
The compact wafer-style cylindrical body requires less installation space than conventional check valves. This makes it ideal for tight or crowded piping galleries, offshore platforms, and skid-mounted process systems, but only for clean service due to ragging.
Critical Check Valve Selection Criteria
Selecting the right back pressure valve for industrial applications involves more than matching the valve to the pipe diameter, but also these technical parameters:
Flow Rate and Sizing
Although line sizing is a good starting point, it does not guarantee the valve will operate within its flow sweet spot. An oversized valve means the disc will not reach its full travel, resulting in chattering where the disc repeatedly opens and closes. Proper valve sizing must be based on operating conditions and expected flow rate to reduce continuous fluttering.
Pressure Drop and Head Loss
Head loss refers to energy dissipation as fluid passes through the valve, directly affecting the electrical consumption of the system pumps. Lower head loss results in greater energy efficiency and lower total operating costs. Choosing a valve with a high flow coefficient (low Cv or Kv) comes with a higher initial cost, which is offset by long-term energy savings.
Cracking and Reseal Pressure
Cracking pressure refers to the minimum upstream pressure required to open the valve. Conversely, the reseal pressure is the minimum downstream pressure required to create a leakproof seal. These thresholds determine whether a valve needs higher or lower hydraulic force to operate optimally while reducing wear.
Non-Slam Characteristics
In systems with rapid flow reversal and system deceleration, the valve’s dynamic response becomes just as important as sealing performance. To prevent slam and water hammer, a valve must either close very quickly or very slowly using hydraulic dampers and other equipment. Nozzle check valves can mitigate surge pressures in multi-pump designs.
Check Valve Applications and Industry Needs
Different sectors present different operating conditions that dictate the necessary material selection, valve specifications, and certifications.
Oil and Gas Sector

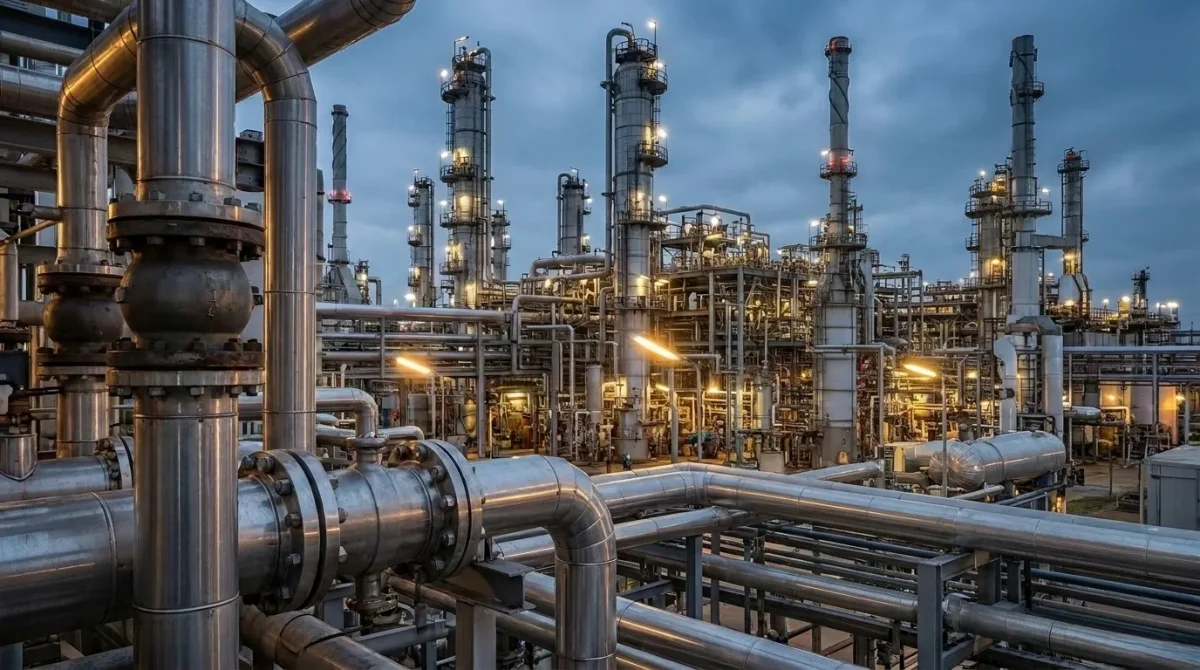

This sector demands high-specification, API-certified components to manage extreme pressure differentials. In deep-sea pipelines and refineries, the YKY GB swing check valve provides dependable backflow prevention.
Chemical Processing Sector
With emphasis on corrosion resistance, valves made from noble materials like duplex stainless steel and resilient linings like PTFE and RPTFE are the superior choice. They are designed to resist chemical attacks when handling aggressive media such as chlorine and sulfuric acid.
Water Treatment and Pumping Sectors
Due to their self-cleaning function, ball check valves are often employed in these industries. High-service pumping stations use them as back pressure valve industrial components to prevent reverse spin and reduce water hammer.
Power Generation and Metallurgy Sectors
High-temperature steam, elevated system pressures, and continuous smelting require high-performance sealing and forged steel construction. To maintain operation for extended cycles, valves must be capable of withstanding thermal shocks of 600 degrees Celsius or higher.
Industrial Check Valve Installation Best Practices
Proper system design means matching the check valve with the fluid dynamics of the operating environment. Precise installation is just as critical to prevent premature failure and extend service life.
As a general best practice, engineers should follow the ‘Rule of 5’ where check valves are installed at least five pipe diameters downstream of any flow disturbances. Also, a straight run of five to ten diameters downstream of the valve allows process media to recover from turbulence. Horizontal installations are also preferred to reduce sedimentary buildup on discs.
Consider where the YKY GB and API swing check valves can improve an industrial piping system by checking the product catalogue and FAQs.
